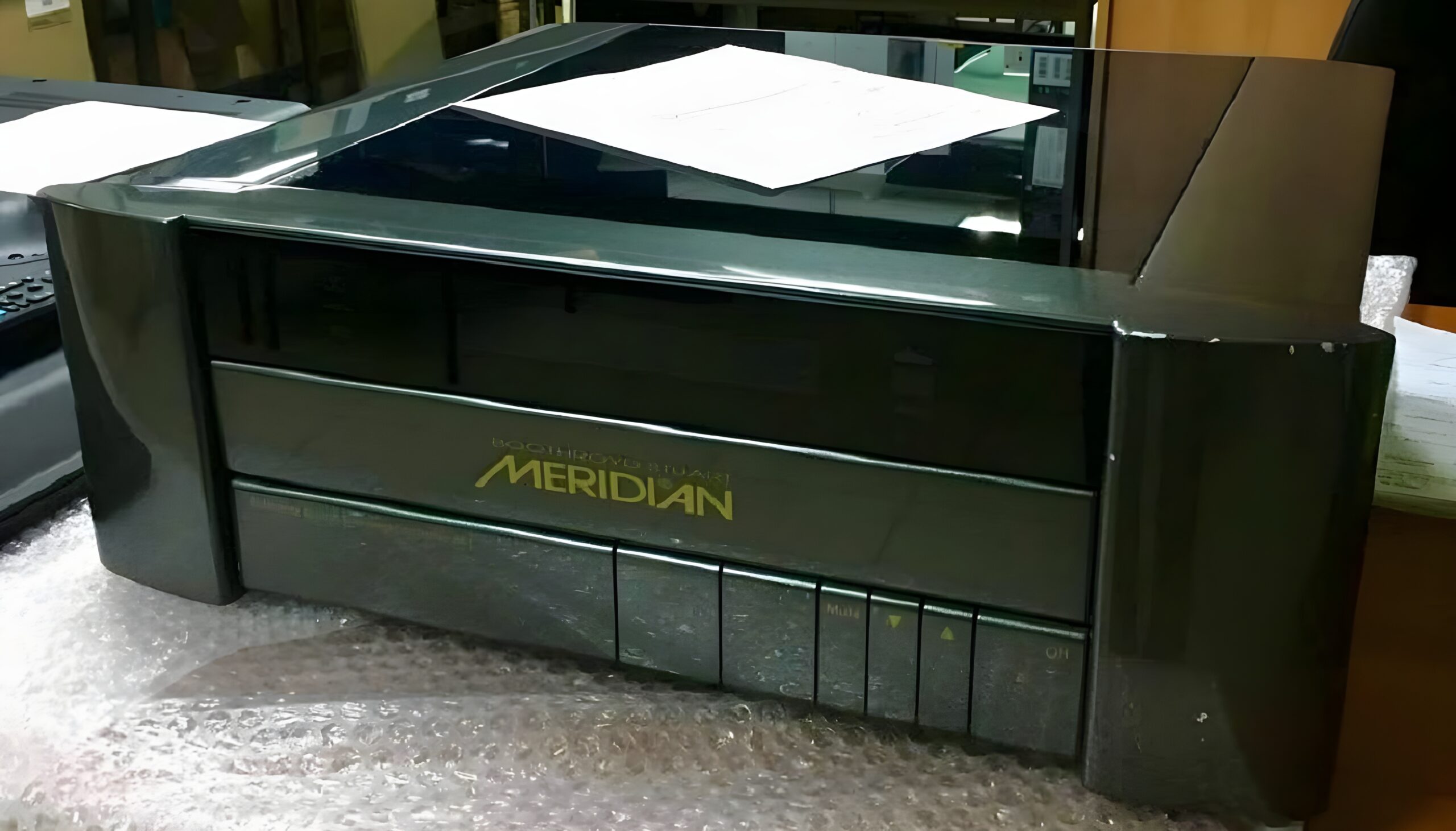

Meridian 861V8 Reference

Description

SPECIFICATIONS:
861 Reference Digital Surround Controller
The 861 Reference Digital Surround Controller is the highest performance surround controller that we offer and forms the heart of the highest-performance Meridian Digital Theater system.

As the Surround Controller in the Reference 800 Series, 861 is built on the 800 Series’ modular architecture, allowing additional features and connectivity to be added to a standard “core” via a series of additional card options.

The 861 V8 core includes: a digital output card with eight SpeakerLink outputs, for simple, single-wire connection to Meridian DSP Loudspeakers; a digital input card with six coaxial digital inputs (configurable as two multichannel SmartLink inputs), plus two Toslink optical inputs, one SpeakerLink input, and one MMHR Meridian Multichannel High Resolution input; an analogue input card with six stereo analogue inputs (phono) with 96/24 ADC, configurable as two multi channel analogue inputs.
