Description

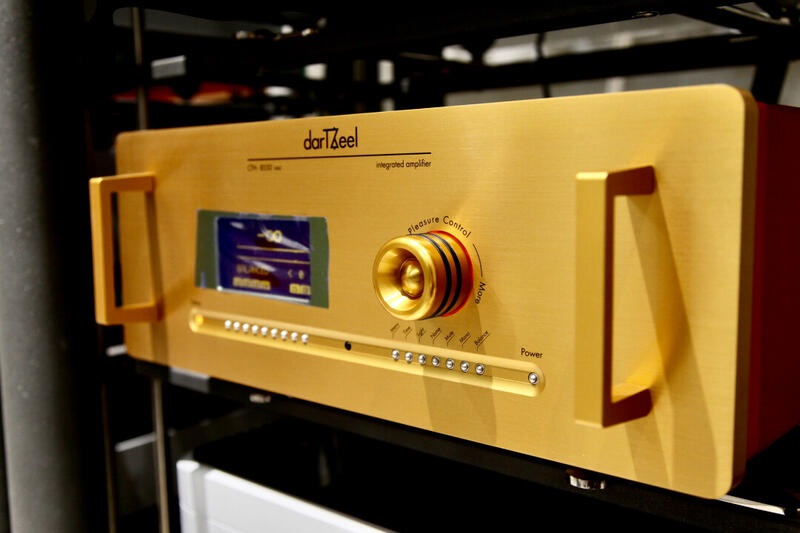

Brand: DarTZeel CTH-8550
Type: integrated Amplifier
Model: CTH-8550
Function: Flawless
Usage State: Second-Hand
Appearance: As good as new
SPECIFICATIONS:
Inputs: 4 pairs line (RCA), 1 pair balanced (XLR), 2 pairs Zeel (BNC), 1 pair MC phono (RCA). 1 pair MM phono (RCA, optional).
Outputs: preamplifier (RCA), Record (RCA), darT (BNC), speaker (4mm binding posts).
Maximum output power: 200W into 8 ohms (23dBW), 330W into 4 ohms (22.2dBW), 330W into 2 ohms (19.2dBW), “limited by software.”
Output impedance: 75 ohms (Preamp), 50 ohms (darT), <0.33 ohms, 20Hz–20kHz (speaker).
Frequency response: 3Hz–300kHz, +0, –6dB, 20Hz–50kHz, ±0.5dB.
Risetime: <0.8µs. Slew rate: >88V/µs peak–peak.
Power consumption: 1kW maximum, 40W idle, 3W standby.
Dimensions: 17.2″ (440mm) W by 6.6″ (170mm) H by 13.1″ (335mm) D; 16.2″ (415mm) D, including handles.
Weight: 62 lbs (28kg). Shipping
